Accuracy grade

0.2, 0.5, (reactive: 1)

Display Range

0~9999,-1999~9999,-9999~9999,magnification to be set arbitrarily

Input

Standard Value

Voltage: 100V, 220V, 380V

Current: 1A, 5A, 75mv

Overdose

Constant 1.2times, instantaneous Current:10times/5s, instantaneous Voltage:2times/10s

Frequency

45～65Hz

Impedance

Normal current side: ≤0.10

Power Supply

Voltage Range

AC220V (default)

AC/DC85~260V (specified when order)

Power Dissipation

<5VA

Output

Simulation Value

4~20mA

Communication

RS485 MODBUS protocol, 1 stop bit, 8 stop bit, 1 stop bit

Baud rate: 2400/4800/9600/19200/38400

Relay Alarm

Passive dimentional electrical conversion node: 3A/30VDC, 3A/22OVAC;

Limitation alarm

Down limit alarm, down or upper limit alarm, delayed time to be adjusted.

Power Frequency withstand Voltage

2kV/1 min(AC efficiency value)

Insulation Resistance

≥100MQ

MTTF

≥60000h

Working Condition

Temperature

Working: -15~+55℃

Storage: -25≈+70℃

Relevant Humidity

≤88%RH

Elevation

≤2500m, ≥4000m

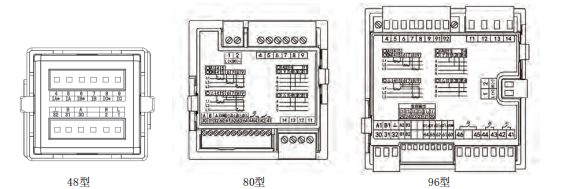

Unit Outline

Frame Dimention

Shell Dimention

Aperture Dimention

Aperture deepth*

48 square

48×48

44.5×44.5

45×45

80

80 square

83×83

74.5×74.5

75×75

37

96 square

96×96

90.5×90.5

91×91

42
